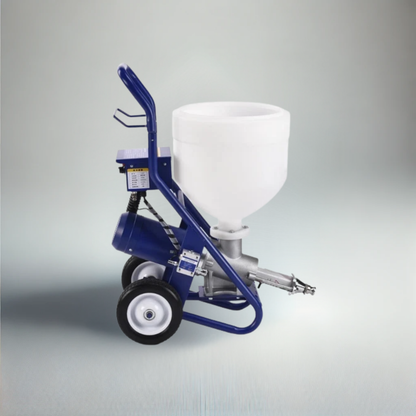

JAFE TX 1220 Professional Projection Machine

JAFE TX 1220 Spray and Projection Machine

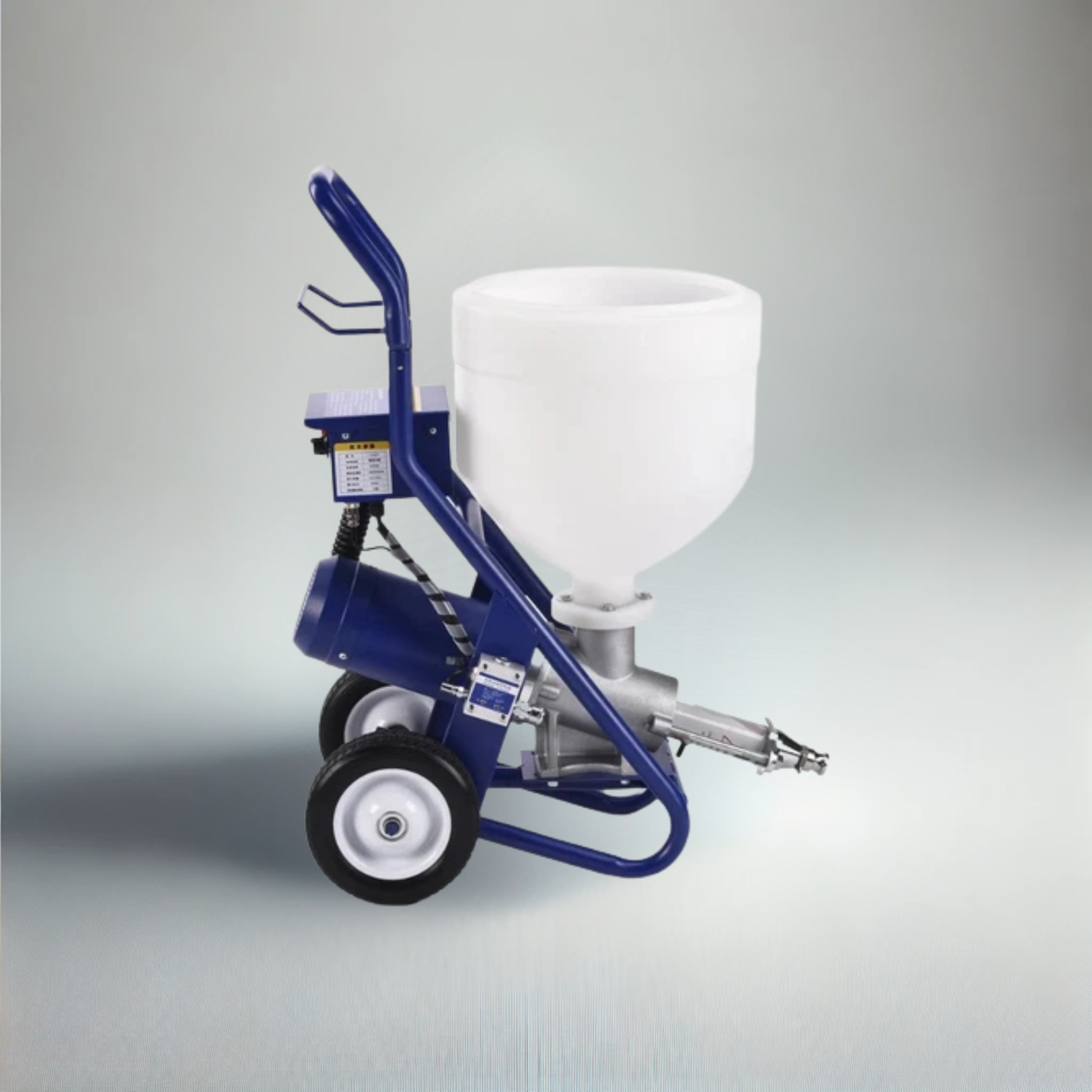

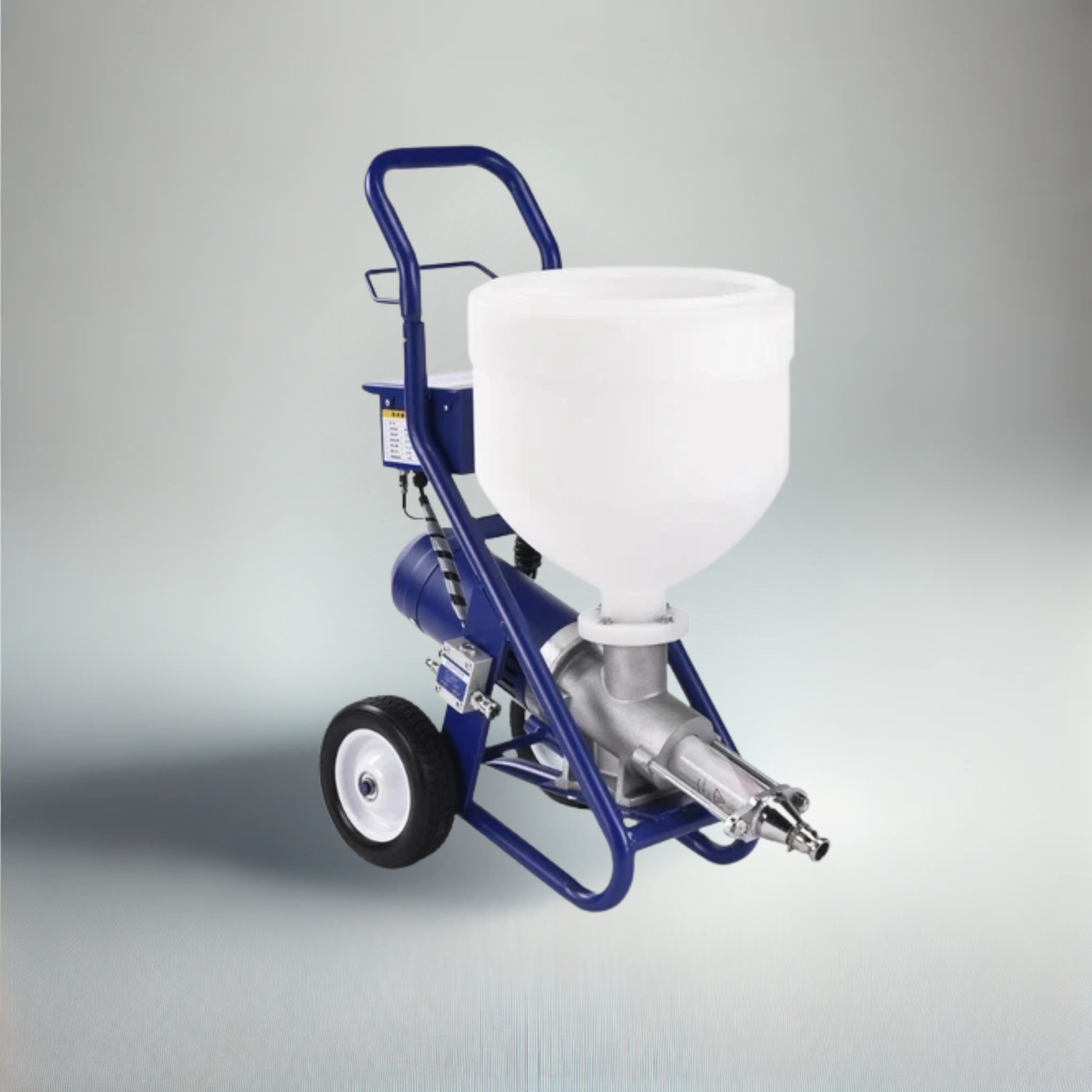

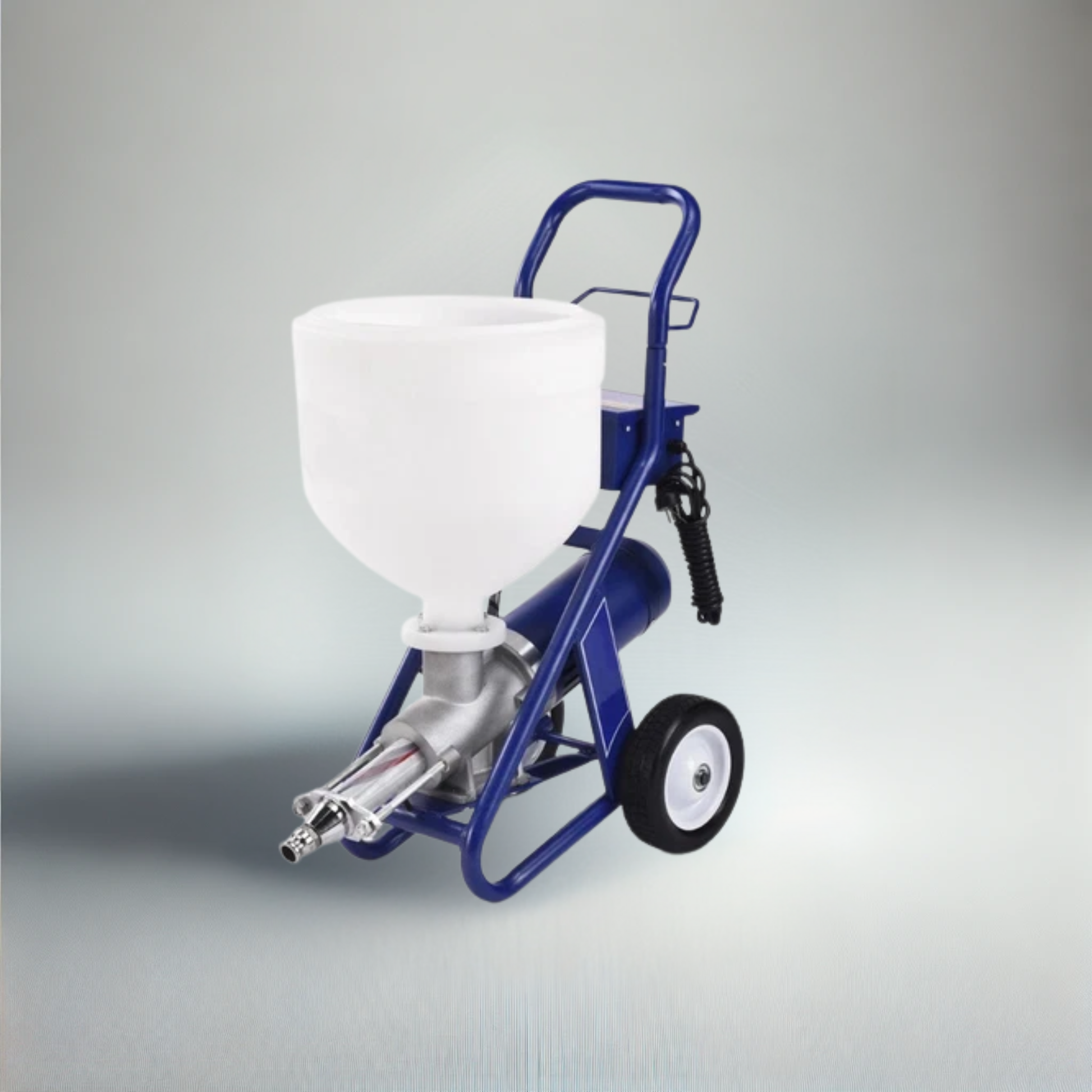

The JAFE TX 1220 is a professional projection machine designed for applying spray cork, putties, latex, mortars and SATE / ETICS exterior insulation systems. It is a practical solution for contractors who need reliable performance, controlled material flow and efficient application on site.

With a 30L hopper, brushless motor and adjustable working pressure up to 20 bar, the TX 1220 is suitable for façade work, coating applications, renovation projects and professional finishing systems.

Why choose the JAFE TX 1220?

The TX 1220 is designed for professionals who need a compact but capable machine for projection and spray application. It offers adjustable flow, stable performance and practical site handling, making it suitable for medium-sized and professional coating projects.

The machine can be used with a spray gun or straight gun, and comes with product and air hoses with fittings, giving applicators the equipment needed to start working with compatible materials.

Key Benefits

• Professional machine for spray and projection applications.
• Suitable for spray cork, putties, latex, mortars and SATE / ETICS systems.
• 30L hopper capacity for practical site use.
• Brushless motor for higher performance, reliability and lower maintenance.
• Adjustable maximum pressure up to 20 bar.
• Controlled product flow from 0.6 to 12 L/min.
• Maximum hose length up to 15m.
• Maximum spraying height up to 10m.
• Suitable for materials with granulometry up to 3mm.
• Compact and mobile construction for easier movement on site.

Key Features

Brushless Motor

The brushless motor provides high performance, efficient operation and reduced maintenance compared with traditional motor systems. This makes the machine suitable for regular professional use.

30L Large Capacity Hopper

The large 30L hopper allows longer working time between refills, helping improve productivity during façade, coating and projection work.

Aluminium Body

The aluminium body helps reduce weight while maintaining durability for professional site conditions.

Control Panel

The control panel allows the operator to manage machine operation and adjust settings during application.

Precision Air Sensor

The precision air sensor allows the machine to stop and start spraying with the trigger, helping improve control and reduce material waste during work.

Pump Speed Regulator

The pump speed regulator allows material flow adjustment, helping the user match output to the product, nozzle, surface and application method.

Operating Mode Switch

The selector switch allows the user to choose the required operating mode, including automatic, forward or reverse, depending on the application and cleaning process.

Ergonomic and Mobile Design

The machine is designed with an ergonomic handle and wheeled frame, making it easier to move, position and operate on site.

Suitable For

• Spray Cork application.
• Façade coating systems.
• Exterior wall renovation.
• SATE / ETICS external insulation systems.
• Putties and levelling materials.
• Latex materials.
• Mortars and compatible textured products.
• Professional construction and renovation work.

Equipment Included

• JAFE TX 1220 machine.
• Spray gun or straight gun, depending on selected option.
• 7.5m product hose with fittings.
• 7.5m air hose with fittings.

Technical Specifications

• Product: JAFE TX 1220 Projection Machine
• Motor: Brushless motor
• Minimum Product Flow: 0.6 L/min
• Maximum Product Flow: 12 L/min
• Adjustable Maximum Pressure: up to 20 bar
• Frequency: 220V / 50Hz
• Maximum Hose Length: 15m
• Maximum Spraying Height: 10m
• Maximum Granulometry: 3mm
• Hopper Capacity: 30L
• Weight: approx. 25.5kg

Application Notes

• Always check material compatibility before use.
• Use the correct nozzle, pressure and flow settings for the material being applied.
• Do not exceed the maximum recommended granulometry of 3mm.
• Clean the machine, hoses and gun immediately after use.
• Follow the material manufacturer’s application instructions.
• Carry out regular inspection and maintenance to keep the machine working correctly.

Professional Machine for Spray Cork and Façade Systems

The JAFE TX 1220 is a practical projection machine for contractors working with spray cork, façade coatings, mortars, putties and exterior insulation systems. It offers controlled flow, strong performance and mobile site handling in a compact professional format.

Choose the JAFE TX 1220 for efficient spray and projection work on façades, coating systems and professional renovation projects.
